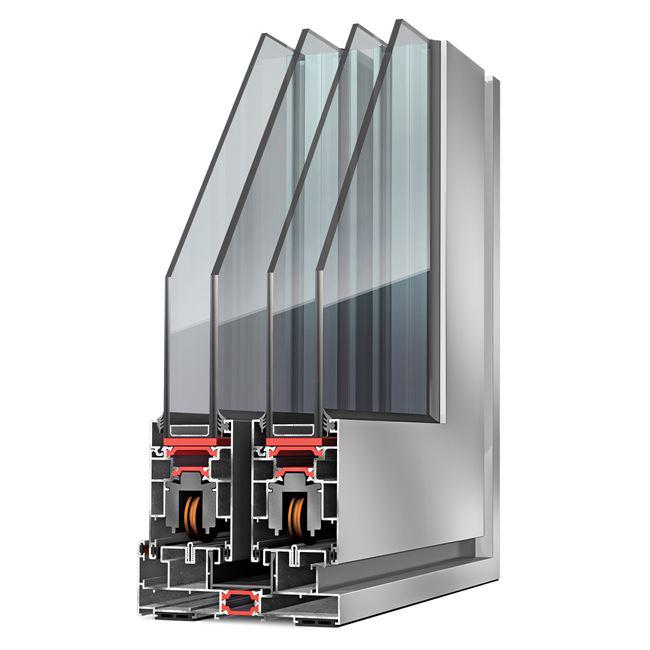

Albio 235 is ideal for wide opening applications, having profiles with great endurance and high moment of inertia. The system presents excellent thermal-insulation properties thanks to the 24-34mm polyamides and special multi-chambered PVC add-ons. Moreover, the system offers water-tightness through EPDM sealing gaskets and its special lift & slide railing mechanism. These fittings give the possibility of using large and thick glazing units, with a capacity that can reach up to 200kg sash weight.
Technical characteristics
- Aluminum Alloy: EN AW 6060Τ6, EN 15088:2005
- Powder coating: According to the European standard Qualicoat
- Anodising: According to the European standard Qualanod
- Tolerance: EN 12020-2
- Gaskets: EPDM
- Glazing Thickness: 24mm & 36mm
- Lift & slide fitting: GU-937/957
- Scroll Guide: Stainless steel, polyamide
- Thermal- Break: 12mm, 24mm, 34mm (PA 6.6, 25%GF)
- Air Permeability: Specimen dimensions: 2.10m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000)
- Thermal transmittance coefficient: 3.6 – 6.8 W/(m2K) (EN 10077-2:2003-10)
- Water Tightness: Specimen dimensions: 2.10m X 2.20m: Class 7A (EN 1027:2000 / EN 12208:2000)
- Sash dimensions: Width 56mm, height 84.5mm
- Resistance to wind load: Specimen dimensions: 2.10m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000)
The design, production process and quality control of all ALPEXAL profiles are certified according to the European standard ISO 9001:2008. ALPEXAL coating process is certified and conducted in accordance with the European standard QUALICOAT.
