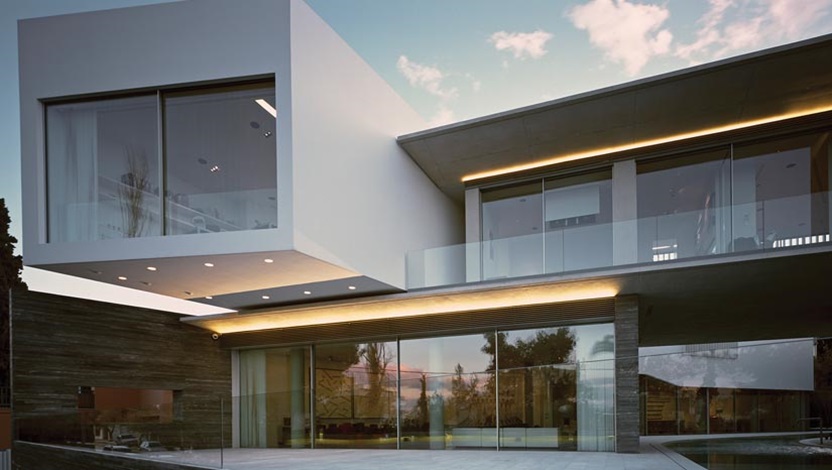

Our company presents the new ORAMA system, which provides minimal and flawless architectural aesthetic, upgrading your living space. –The thickness of the maximum visible vertical surface is only 3cm.
–All sliding typologies are available including single, double, and triple track systems as well as corner-free solutions that open your vision to 360 degrees.
–The high capacity stainless steel rollers and tracks allow smooth sliding action and extreme ease of movement with large glass areas.
–Concealed electric drives and locks can be used to increase operating comfort and to increase the security level of the opening.
–The high-quality multi-locking point system developed by ORAMA offers the best possible burglar resistance in accordance with European standardsThe sash and frame profiles come with 24mm polyamide bars. With 38mm sash width, the system offers excellent thermal insulation. A special feature of the system is the option of embedding a stainless steel rail into the frame profile for great functionality and durability. Its design includes two different patterns, flat and oval.The sash and frame profiles come with 24mm polyamide bars. With 38mm sash width, the system offers excellent thermal insulation. A special feature of the system is the option of embedding a stainless steel rail into the frame profile for great functionality and durability. Its design includes two different patterns, flat and oval.
- Aluminium alloy : AlMgSi 0,5 F22, DIN 1725
- Powder coating : according to the QUALICOAT quality sign
- Anodising : according to the QUALANOD quality sign
- Dimensional tolerances : ELOT EN 12020-2
- Gaskets : EPDM
- Sash dimensions : width 38mm, height 97mm
- Glazing thickness : 5 to 22mm
- Rollers : 30mm adjustable,teflon rollers
- Rail Profile : stainless steel, polyamide
- Thermal-break : 24mm (PA 6.6, 25% GF)
