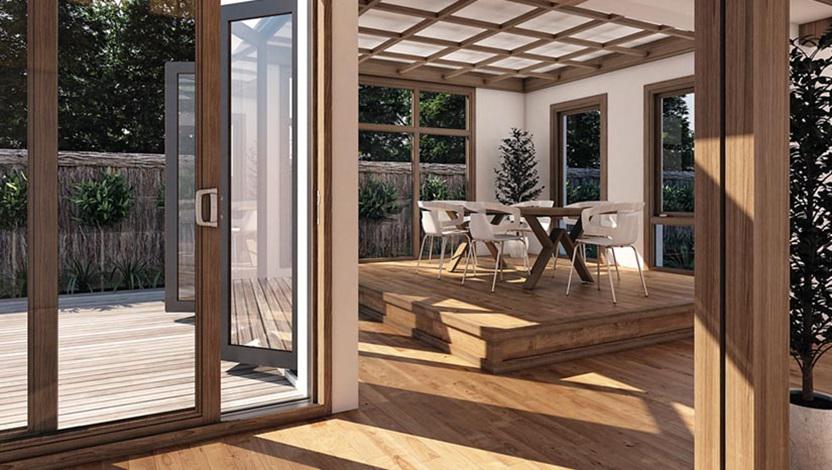

Albio 227 is a thermal break sliding system, suitable for replacing old sliding windows.
Technical characteristics
- Aluminum Alloy: EN AW 6060Τ6, EN 15088:2005
- Powder coating: According to the European standard Qualicoat
- Anodising: According to the European standard Qualanod
- Tolerance: EN 12020-2
- Gaskets: EPDM
- Glazing Thickness: 20mm
- Scroll Guide: Stainless steel, polyamide.
- Thermal- Break: 18mm (PA 6.6, 25% GF)
- Air Permeability: Specimen dimensions: 1.40m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000)
- Thermal transmittance coefficient: 3.7 – 4.8 W/(m2K) (EN 10077-2:2003-10)
- Water Tightness: Specimen dimensions: 1.40m X 2.20m: Class 5B (EN 1027:2000 / EN 12208:2000)
- Sash dimensions: Width 31mm, height 96mm
- Resistance to wind load: Specimen dimensions: 1.40m X 2.20m: Class C1/C2 (EN 12211:2000 / EN 12210:2000)
