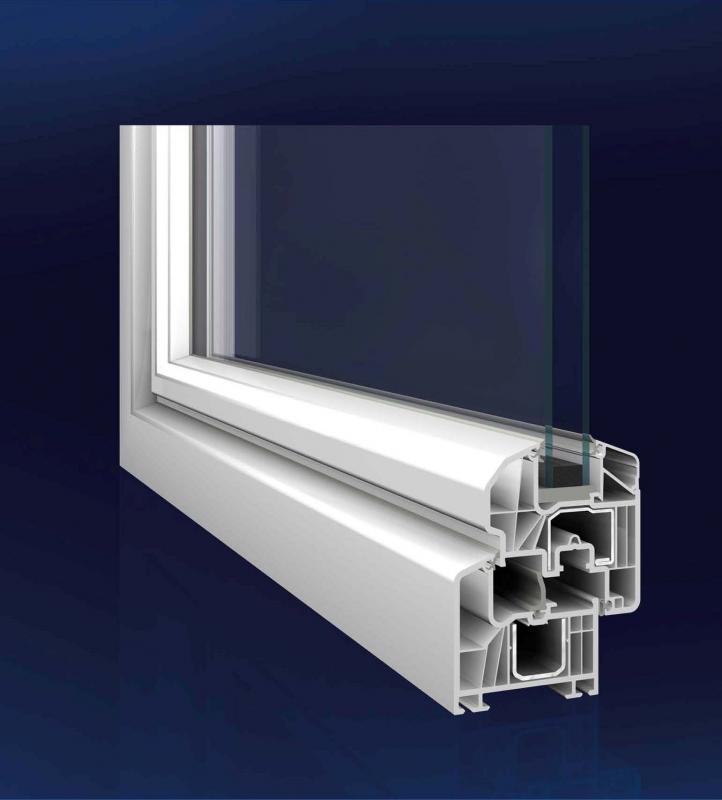

SYSTEM PRESTIGE – A high quality window profile that delivers an excellent balance between ecology, design and functionality and meets the high standard of today’s modern building requirements.
Harmonised design combined with a high level of functionality such as excellent sound insulation and very good thermal insulation values fully satisfy the latest requirements of the Energy Saving Regulation and the values required for entitlement to KfW financial support (German Reconstruction Loan Corporation). Using the state-of-the-art 6-chamber technology and a profile depth of 76 mm you can benefit from great energy savings and substantially reduce heating costs. Compared to standard windows with single glazing Inoutic windows with their high quality insulated glass can reduce heating costs by up to 40 %.
Technical characteristics
- 76 mm system, 6 chambers
- Frame insulation value Uf = 1.1 W/m2K with centre seal or Uf = 1.2 W/m2K with rebate seal
- Insulation value of entire window Uw up to 0.69 W/m2K – this even exceeds the expected required values of the Energy Saving Regulation EnEV for 2012 (Uw ≤ 0.95 W/m2K). Eligible for financial support through the KfW German Reconstruction Load Corporation.
- Also with Thermo Profile made from recycled material for enhanced thermal insulation
- Curves and 20° bevels ensure a good water run-off and harmonic design
- 3 different sash designs available
- Accommodates glazing thickness of up to 44 mm for thermal and acoustic insulation
- Inner 2-foot glass bead for enhanced burglary protection
- Glass rebate height of 25 mm for avoidance of condensation water
- Three framed weldable TPE seals with centre sealing system, two with rebate seal system
- RAL-certified overlap bonding for floor-to-ceiling elements of up to 2.60 m
- Soundproofing up to 47 dB (noise protection class 5)
- 40 different laminated foil colours
- Prestige classic offset, also available with aluminium cladding – unlimited choice of colours
